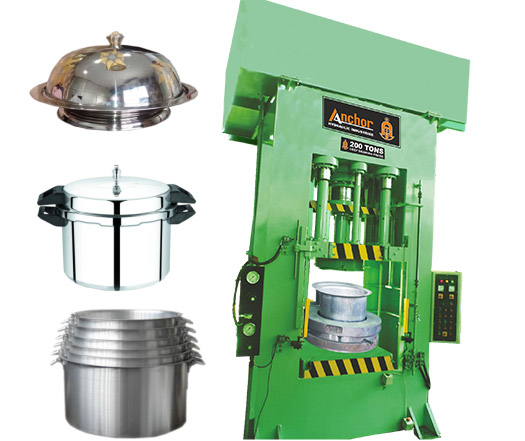

200 TONS BLANK HOLDER TYPE DEEP DRAWING PRESS
"Specially Engineered High Speed Deep Drawing Presses For the manufacture of Kitchen Wares and Hotel Equipments"
200 Tons Blank Holder Press Most Ideal For The Manufacture Of House Ware Items-hotel Ware Items Out Of Stainless Steel, Aluminium, Brass Etc. Draw Length From 2" Deep To 15" Deep Variable And Settable.
High Speed Version Almost Catching up with the High Cost Mechanical Presses In terms of production but with Fine Pressure Controls,Safety Features and Zero Maintenance and Down Time.

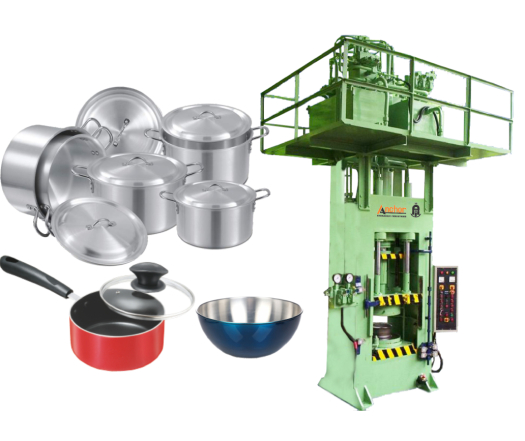

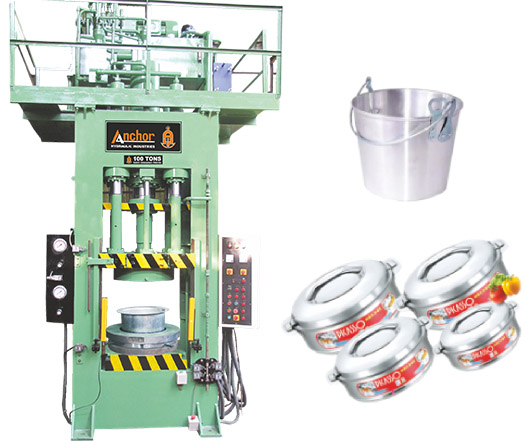

100 TONS BLANK HOLDER TYPE DEEP DRAWING PRESS
100 Tons Blank Holder type Deep Drawing Presses most suited for deep drawing of Casseroles, Pressure cookers, nonstick items all kitchen essential utensils etc.
The Press is two platen type sturdy portal construction having rib-re-enforcement, consisting of one no main cylinder, 4 Nos Blank holding cylinders & 2 Nos Auxiliary cylinders for fast approach having hydraulic powering system on top of press with PLC controlled electrical panel at the most operator friendly position, Two hand push button• arrangement, emergency stop both at operator's foot position and in the panel with photo cell safety guard for operator's safety in the front, with volt meter, ampere meter, electronic counter and many added features.
65 TONS BLANK HOLDER TYPE DEEP DRAWING PRESS
"Those who give good service have good friends and we have great friends"
The most compact and smaller version of Blank Holder Type Deep Drawing Press for the manufacture of light utensils like Aluminum, Copper, Brass etc. Where Blank Holder pressure is minimum or zero. Circle size of up to 20"or 22" 0 Deepest Draw up to 9" can be achieved.
Maximum production oriented, most cost affective with all technical features like Heavy Duty Presses.
Specification of our standard Blank Holder type Hydraulic Deep Drawing Press.
| DESCRIPTION | 65 TONS | 100 TONS | 150 TONS(12") | 150 TONS (15") | 200 TONS | 250 TONS |
|---|---|---|---|---|---|---|
| Main Ram Pressure in Tons | 65 | 100 | 150 | 150 | 200 | 250 |
| Blank holder Pressure in Tons | 25 | 40 | 60 | 60 | 80 | 100 |
| Main Ram Stroke | 20" | 26" | 26" | 33 | 33 | 33 |
| Blank Holder Stroke | 18" | 24" | 24" | 30" | 30" | 30" |
| Daylight from Main Ram to Table | 37" | 48" | 48" | 60" | 60" | 60" |
| Daylight from Blank Holder to Table | 22" | 30" | 30" | 40" | 40" | 40" |
| Table size | 24" X 24" | 28" X 28" | 32" X 32" | 32" X 32" | 36" X 36" | 40" X 40" |
| Hole in Blank holder | 14" | 16" | 18" | 18" | 24" | 26" |
| Largest Blank | 20" ø | 24" ø | 30" ø | 30" ø | 36" ø | 40" ø |
| Hole in Bed | 14" ø | 14" ø | 18" ø | 18" ø | 20"ø | 20"ø |
| Deepest Draw | 9" | 12" | 12" | 15" | 15" | 15" |
| No. of Stroke per minute | 6 | 6 | 4 | 4 | 3 | 3 |
| Motor Capacity | 15 H.P. | 20 H.P. | 25 H.P. | 25 H.P. | 40 H.P. | 50 H.P. |
| Auxiliary cylinder for fast approach | Two nos | Two nos | Two nos | Two nos | Two nos | Two nos |

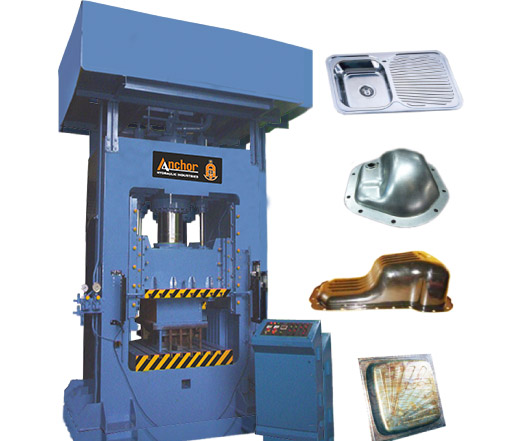

100 TONS DIE CUSHION TYPE DEEP DRAWING PRESS
High Precision Hydraulic Die Cushion type Deep Drawing press of 100 Tons capacity most suitable for deep draw of components upto 5" to 6" suitable to accommodate circle size of 16" to 17" of Aluminium, SS, MS, CRC, Brass etc with top & bottom cylinders, top mounted power pack unit, PLC control panel with all features, emergency stop both foot & hand operated, photo cell safety arrangement for operator's safety etc.
Specification of our standard Blank Holder type Hydraulic Deep Drawing Press.
| DESCRIPTION | 65 TONS | 100 TONS | 150 TONS(12") | 200 TONS | 250 TONS | 350 TONS |
|---|---|---|---|---|---|---|
| Main Cylinder Capacity | 65 tons | 100 tons | 150 tons | 200 tons | 250 tons | 350 tons |
| Cushion Cylinder Capacity | 25 tons | 40 tons | 60 tons | 80 tons | 100 tons | 140 tons |
| Main Cylinder Stroke | 500 mm | 650 mm | 825 mm | 825 mm | 1000 mm | 1000 mm |
| Cushion Cylinder Stroke | 300mm | 350 mm | 450 mm | 450 mm | 550 mm | 550 mm |
| Day light (bed to ram table) | 1000 mm | 1200 mm | 1500 mm | 1500 mm | 1800 mm | 1800 mm |
| Bed size | 600 x 600 (mm) | 700 x 700 (mm) | 800 x 800 (mm) | 900 x 900 (mm) | 1000 x 1000 (mm) | 1400 x 1400 (mm) |
| Cushion plate size | 400 x 400 (mm) | 500 x 500 (mm) | 550 x 550 (mm) | 650 x 650 (mm) | 700 x 700 (mm) | 900 x 900 (mm) |
| Hole in ram table (If Required) | 300 ø mm | 350 ø mm | 450 ø mm | 500 ø mm | 500 ø mm | 600 ø mm |
| Type of press frame | Two Platen | Two Platen | Two Platen | Two Platen | Two Platen | Two Platen |
| Ejection | Knock out Pins | Knock out Pins | Knock out Pins | Knock out Pins | Knock out Pins | Knock out Pins |
| Deepest Draw | 225 mm | 300 mm | 375 mm | 375 mm | 450 mm | 450 mm |
| H.P. | 15 H.P. | 20 H.P. | 25 H.P. | 40 H.P. | 50 H.P. | 50 H.P. |
| No. of Stroke Per minute | 6 | 6 | 4 | 4 | 3 | 3 |
| Auxiliary Cylinder for Fast approch | Two nos | Two nos | Two nos | Two nos | Two nos | Two nos |
